RACELINE LC UPGRADE
Master your braking with Raceline LC Upgrade: the ultimate upgrade to take your Raceline pedal set to the next level. This complete kit includes a Load Cell sensor brake pedal that measures pressure rather than travel, an additional spring and elastomer buffer, a 3-pedal support plate, and 2 anthracite gray metal pedal heads.
With a capacity of 220 lb / 100 kg and 24-bit resolution, the sensor accurately reproduces every gram of pressure for precise and powerful braking. With 4 configurations, a preload dial and advanced settings via the T598 racing wheel's Race Dash screen or the My Thrustmaster Panel software on PC, you can customize each pedal's pressure and travel, plus the sensitivity of the response curves.
Raceline LC Upgrade adapts to all driving styles and setups, from a desk/table to a cockpit. It works with Thrustmaster Force Feedback racing wheel bases on game consoles, and with all racing wheel bases on PC.
PRECISION UNDER PRESSURE.
Master your braking with Raceline LC Upgrade! Upgrade your Raceline pedal set with a Load Cell pedal for more realistic and effective braking. Adjust the pressure and responsiveness to suit your driving style and gain precious tenths of a second at every turn!
KEY POINTS:
- LOAD CELL: Brake pedal with super-precise Load Cell sensor — capacity of 220 lb / 100 kg and 24-bit resolution
- ULTIMATE UPGRADE: Complete upgrade kit for Raceline Pedals LTE and Raceline Pedals III pedal sets with support plate for 3 pedals, and 2 additional metal pedal heads
- CUSTOMIZED BRAKING: Configurable pressure force (55–220 lb / 25–100 kg) — 4 configurations (3 springs + 1 elastomer buffer) and 1 preload dial for fine adjustments (+/- 11 lb / 5 kg)
- SOFTWARE SETTINGS: Customized settings for dead zones and EQUALIZER via the T598 racing wheel's Race Dash screen, or the My Thrustmaster Panel software on PC
- PREMIUM DESIGN: Sturdy, 100% metal and fully modular structure — customizable positions for pedals and pedal heads
- COMPATIBILITY: Compatible on PS5, PS4, Xbox Series and Xbox One with Thrustmaster Force Feedback racing wheel bases, and on PC with all racing wheel bases
ULTIMATE UPGRADE

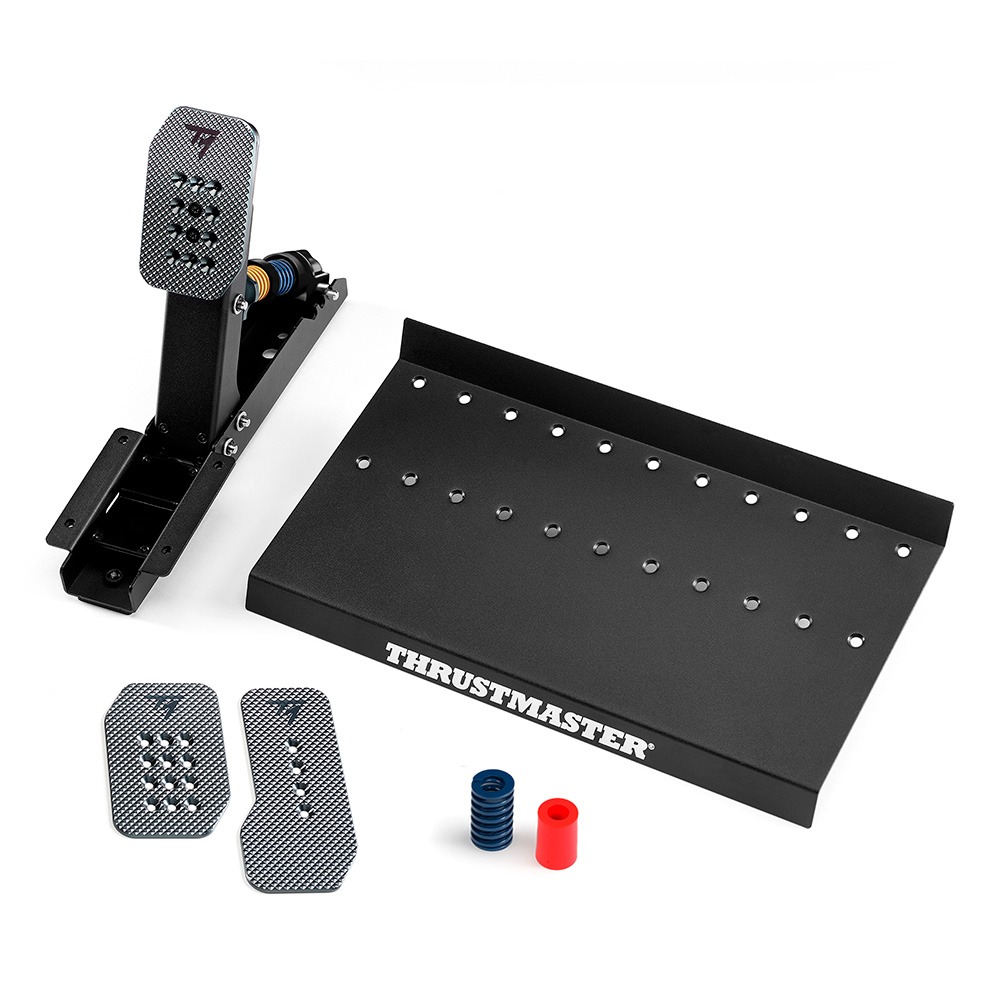

Raceline LC Upgrade includes a Load Cell brake pedal, an additional spring and elastomer buffer, a metal plate for 3 pedals, and 2 anthracite gray metal pedal heads for the clutch and accelerator. Take your racing to the next level by turning your Raceline pedal set into a Raceline Pedals III LC: it's a sturdy, 100% metal, modular upgrade that offers a configuration tailored to every driving style, combining durability and elegance.
THE KEY TO PERFORMANCE
Because braking makes all the difference, equip your Raceline pedal set with a Load Cell sensor brake pedal that measures the pressure applied to the pedal, rather than the pedal's travel. More realistic and precise than a potentiometer, it provides instinctive and effective braking, promoting muscle memory for greater consistency. The result: better control, enhanced precision and precious tenths of a second gained at every turn.
EVERY GRAM COUNTS
The high-sensitivity pressure sensor incorporated into Raceline LC Upgrade is capable of measuring loads of up to 220 lb / 100 kg. With its 24-bit resolution, it offers exceptional precision, accurately transmitting every gram of pressure applied over an 11° travel angle for super-sensitive, high-performance braking.
ADJUSTABLE PRESSURE FORCE
The brake pedal offers 4 versatile configurations, allowing you to easily adjust the maximum pressure force from 55–220 lb / 25–100 kg without any tools, thanks to the included 3 springs and elastomer buffer. The preload dial lets you fine-tune the force in increments of ±11 lb / 5 kg. This lets your pedal set perfectly adapt to all driving styles and all kinds of setups, whether in a cockpit or at a desk/table.
ADVANCED SOFTWARE SETTINGS
Unlock your Raceline pedal set's full potential with advanced settings accessible directly via the T598 racing wheel's Race Dash screen or the My Thrustmaster Panel software on PC. Adjust each pedal's travel, add dead zones and customize your response curves with the EQUALIZER to modulate the sensitivity and behavior in your racing games.
COMPATIBILITY
Raceline LC Upgrade is an upgrade kit compatible with the Raceline Pedals LTE and Raceline Pedals III pedal sets. On game consoles, it works with all Thrustmaster Force Feedback racing wheel bases (excluding T500), thanks to the RJ45 cable and its included RJ12 converter. On PC (Windows 10/11), it is compatible with all racing wheel bases via USB connection. Compatibility details are available on the Thrustmaster support website.
| PRODUCT MEASUREMENTS | ||||
|---|---|---|---|---|
| Dimensions |
| |||
| Weight | 5.1 lb / 2,320 g | |||
| BOX CONTENTS |
|---|
| 1 x Brake Pedal LC |
| 1 x Carpet grip non-slip pad |
| 1 x metal top plate for 3 pedals |
| 1 x Gas metal pedal head |
| 1 x Clutch metal pedal head |
| 1 x Clutch spring |
| 2 x 2.5 mm jack to 3.5 mm jack pedal-to-pedal cables |
| 1 x RJ45 pedal set cable |
| 1 x triple 3.5 mm jack to RJ12 cable |
| 1 x USB-C pedal set cable |
| 1 x Torx wrench to adjust pedals |
| 1 x warranty information flyer |
| Instruction flyer |
