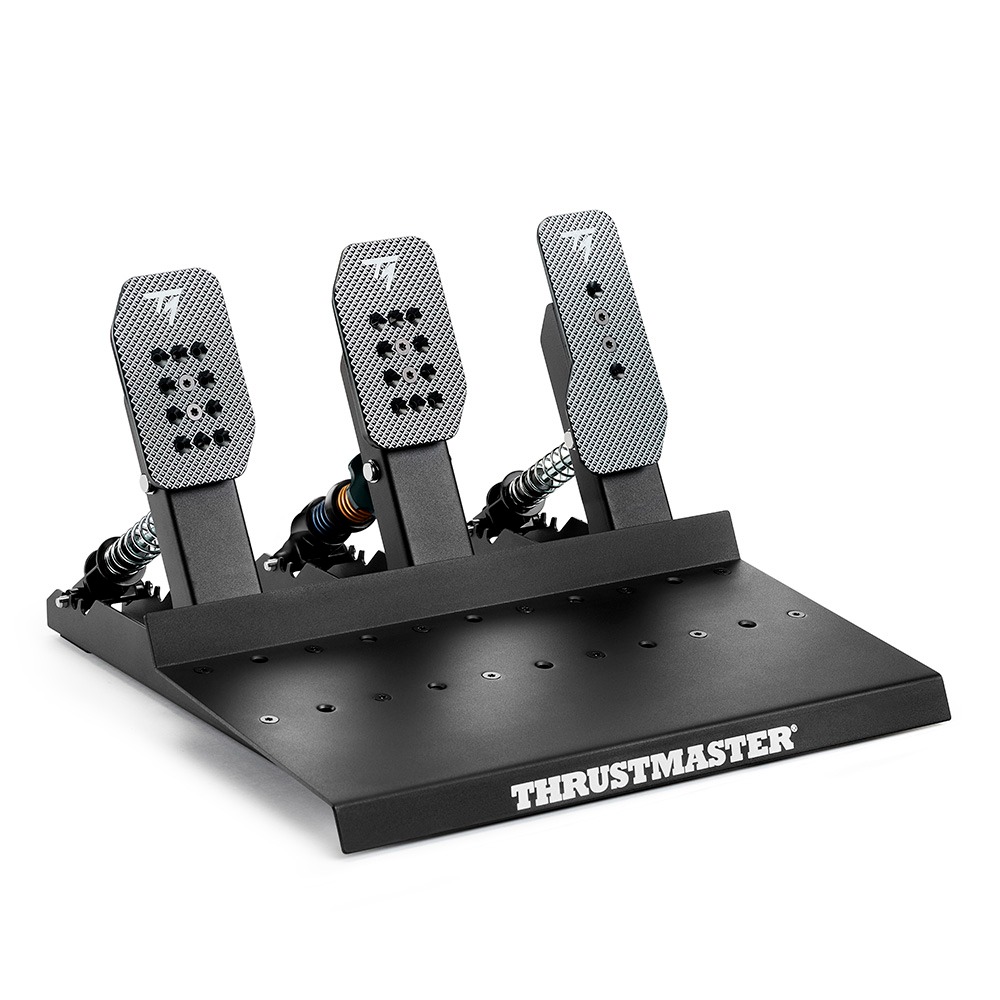

RACELINE PEDALS III LC
Master your braking with Raceline Pedals III LC: the 3-pedal pedal set featuring a Load Cell sensor brake pedal that measures pressure rather than travel, for greater realism and control, as well as Hall Effect (H.E.A.R.T.) sensors for long-lasting precision. With a capacity of 220 lb / 100 kg and 24-bit resolution, the Load Cell sensor accurately reproduces every gram of pressure for precise and powerful braking.
With 4 configurations, a preload dial and advanced settings via the T598 racing wheel's Race Dash screen or the My Thrustmaster Panel software on PC, you can customize each pedal's pressure and travel, plus the sensitivity of the response curves. Thanks to its 100% metal, fully modular design, it adapts to all driving styles and setups, from a desk/table to a cockpit.
It works with Thrustmaster Force Feedback racing wheel bases on game consoles, and with all racing wheel bases on PC.
PRECISION UNDER PRESSURE.
Master your braking with Raceline Pedals III LC! Take your racing performance to the next level with the Load Cell sensor for more realistic and effective braking. Adjust each pedal's pressure and responsiveness to suit your driving style and gain precious tenths of a second at every turn!
KEY POINTS:
- LOAD CELL: Brake pedal with super-precise Load Cell sensor — capacity of 220 lb / 100 kg and 24-bit resolution
- LONG-LASTING PRECISION: Accelerator and clutch pedals with Hall Effect (H.E.A.R.T) sensors for precision and durability
- CUSTOMIZED BRAKING: Configurable pressure force (55–220 lb / 25–100 kg) — 4 configurations (3 springs + 1 elastomer buffer) and 1 preload dial for fine adjustments (+/- 11 lb / 5 kg)
- SOFTWARE SETTINGS: Customized settings for dead zones and EQUALIZER via the T598 racing wheel's Race Dash screen, or the My Thrustmaster Panel software on PC
- PREMIUM DESIGN: Sturdy, 100% metal and fully modular structure — customizable positions for pedals and pedal heads
- COMPATIBILITY: Compatible on PS5, PS4, Xbox Series and Xbox One with Thrustmaster Force Feedback racing wheel bases, and on PC with all racing wheel bases
THE KEY TO PERFORMANCE
Because braking makes all the difference, Raceline Pedals III LC is equipped with a Load Cell sensor brake pedal that measures the pressure applied rather than the travel. More realistic and precise than a potentiometer, it provides instinctive and effective braking, promoting muscle memory for greater consistency. The result: better control, enhanced precision and precious tenths of a second gained at every turn.

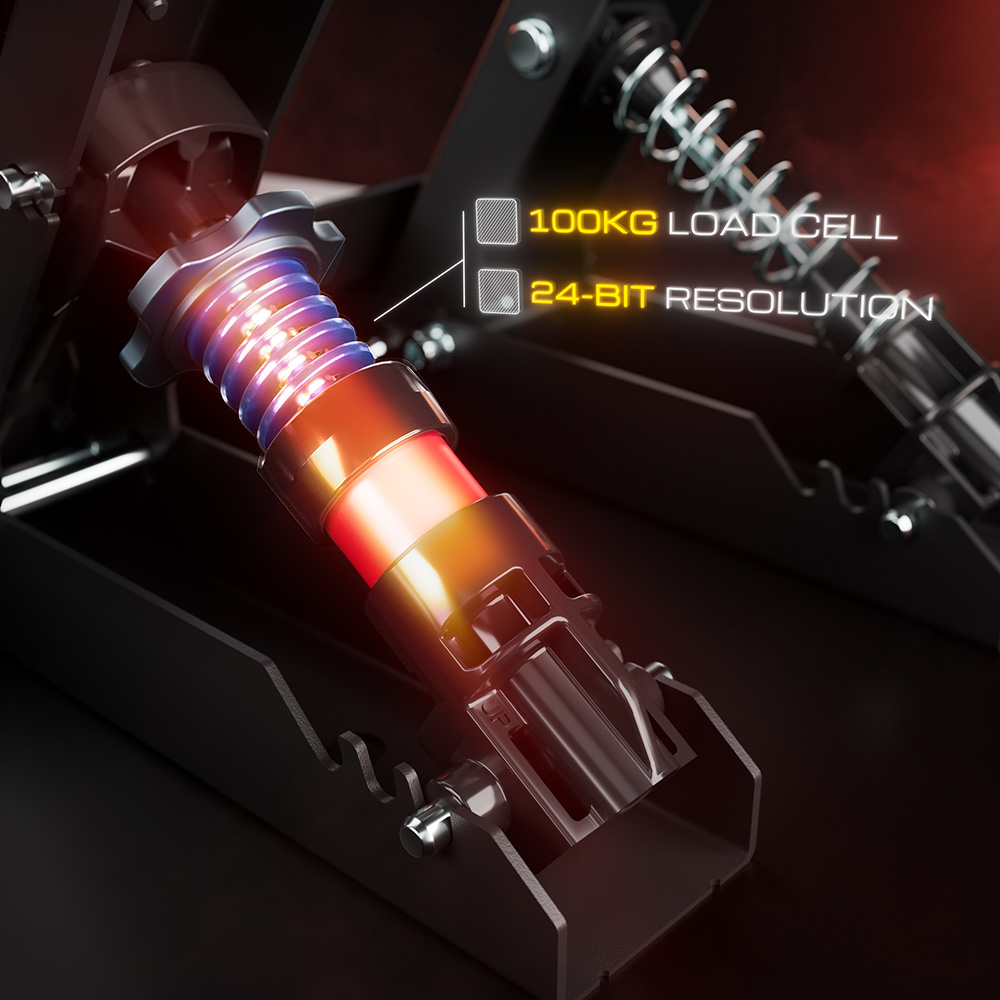

EVERY GRAM COUNTS
Raceline Pedals III LC incorporates a high-sensitivity Load Cell sensor capable of measuring loads of up to 220 lb / 100 kg. With its 24-bit resolution, it offers exceptional precision, accurately transmitting every gram of pressure applied over an 11° travel angle for super-sensitive, high-performance braking. The accelerator and clutch pedals feature Hall Effect (H.E.A.R.T) sensors, ensuring consistent precision and total reliability.

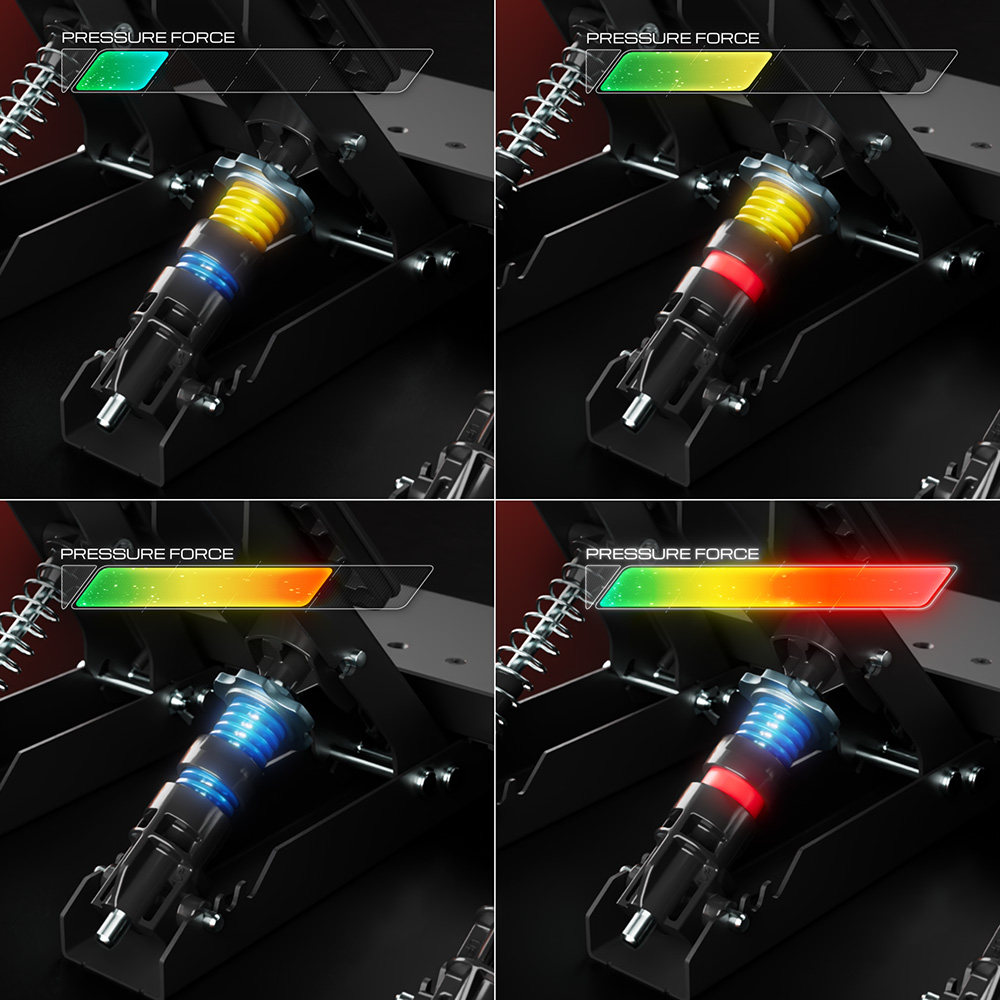

ADJUSTABLE PRESSURE FORCE
The brake pedal offers 4 versatile configurations, allowing you to easily adjust the maximum pressure force from 55–220 lb / 25–100 kg without any tools, thanks to the included 3 springs and elastomer buffer. The preload dial lets you fine-tune the force in increments of ±11 lb / 5 kg. This lets your pedal set perfectly adapt to all driving styles and all kinds of setups, whether in a cockpit or at a desk/table.

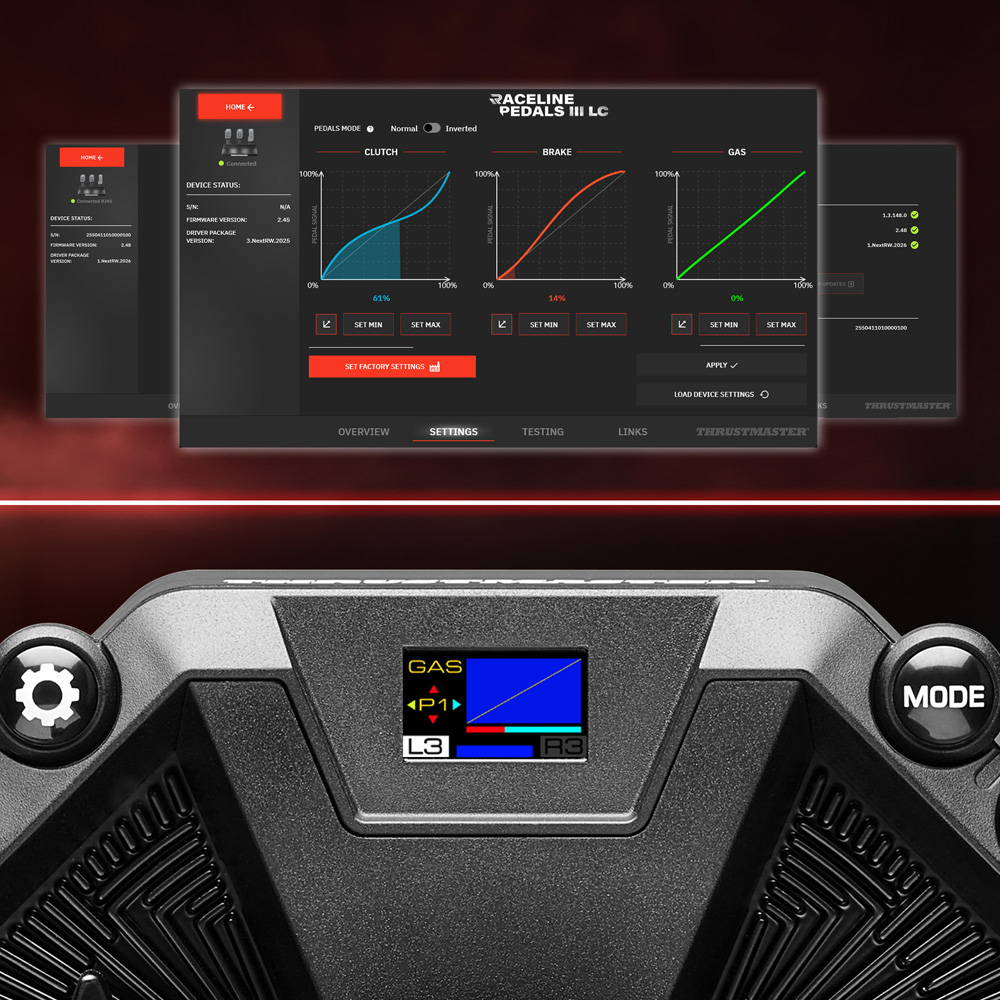

ADVANCED SOFTWARE SETTINGS
Unlock your Raceline pedal set's full potential with advanced settings accessible directly via the T598 racing wheel's Race Dash screen or the My Thrustmaster Panel software on PC. Adjust each pedal's travel, add dead zones and customize your response curves with the EQUALIZER to modulate the sensitivity and behavior in your racing games.

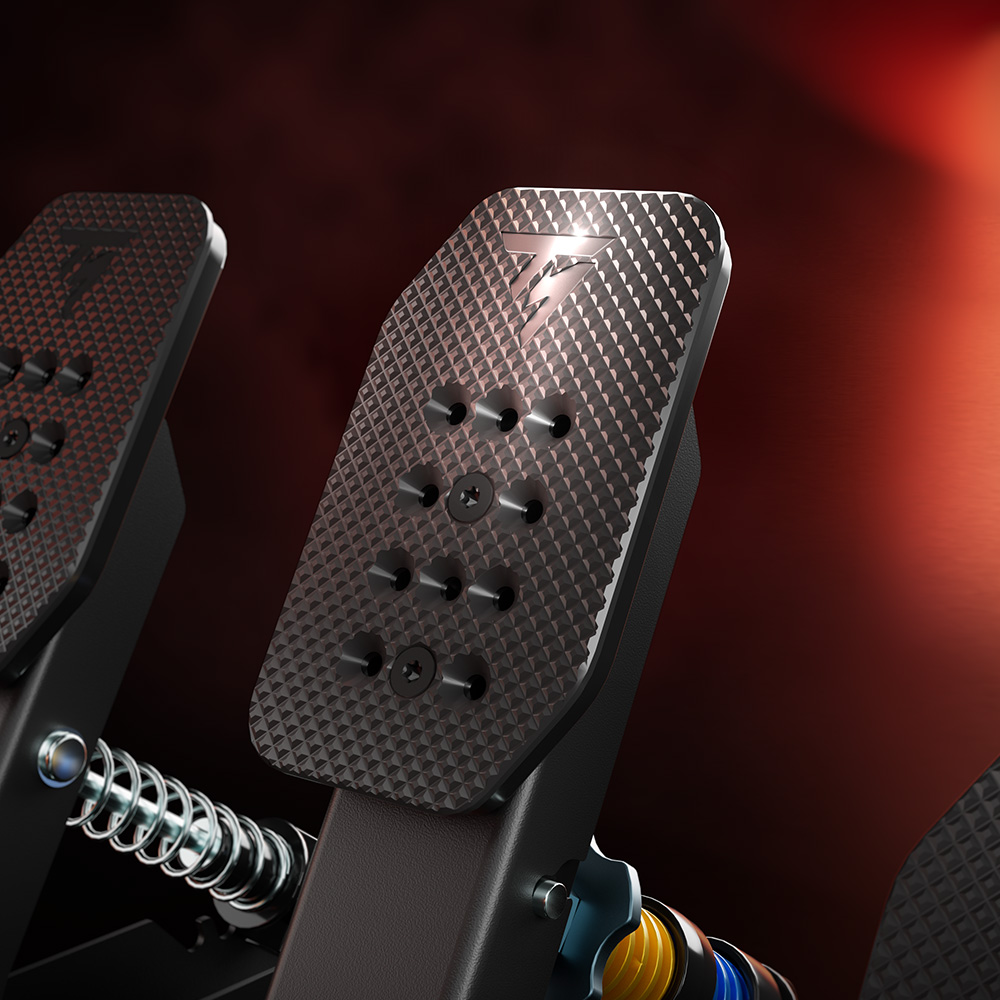

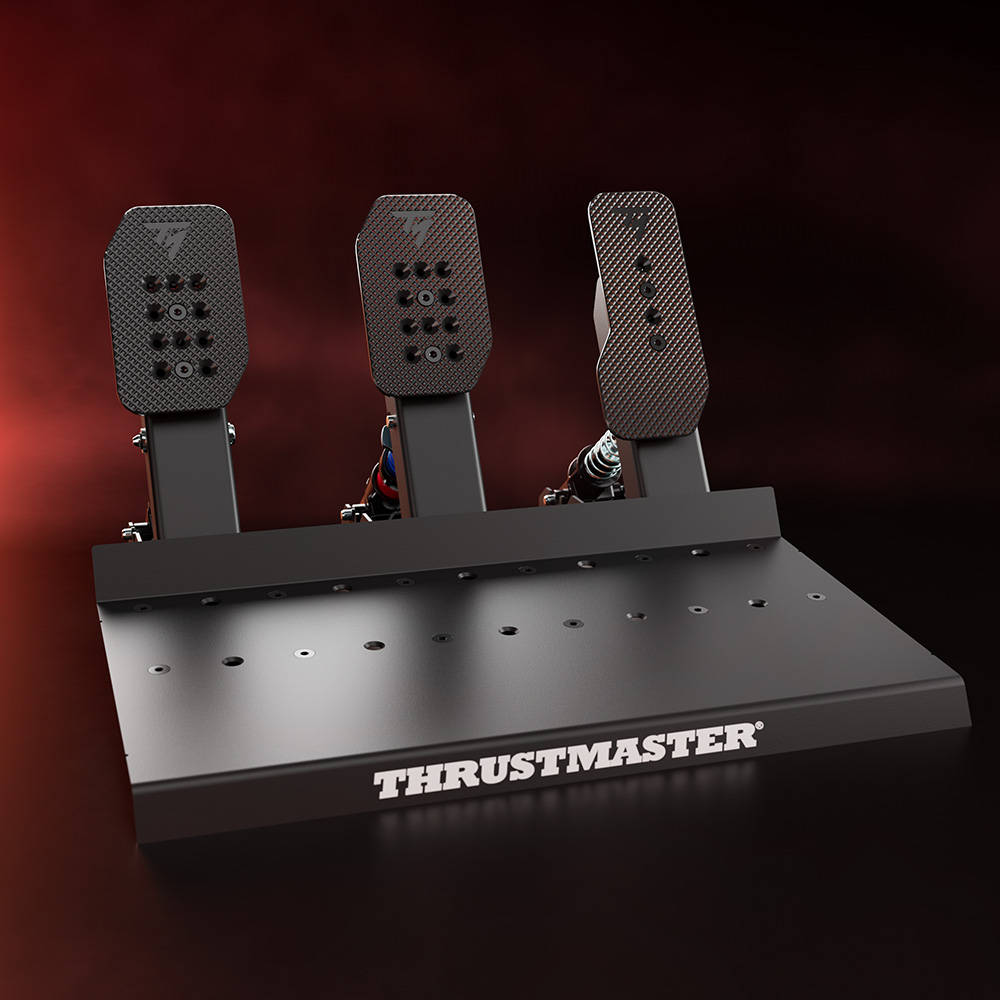

RELIABILITY AND STYLE

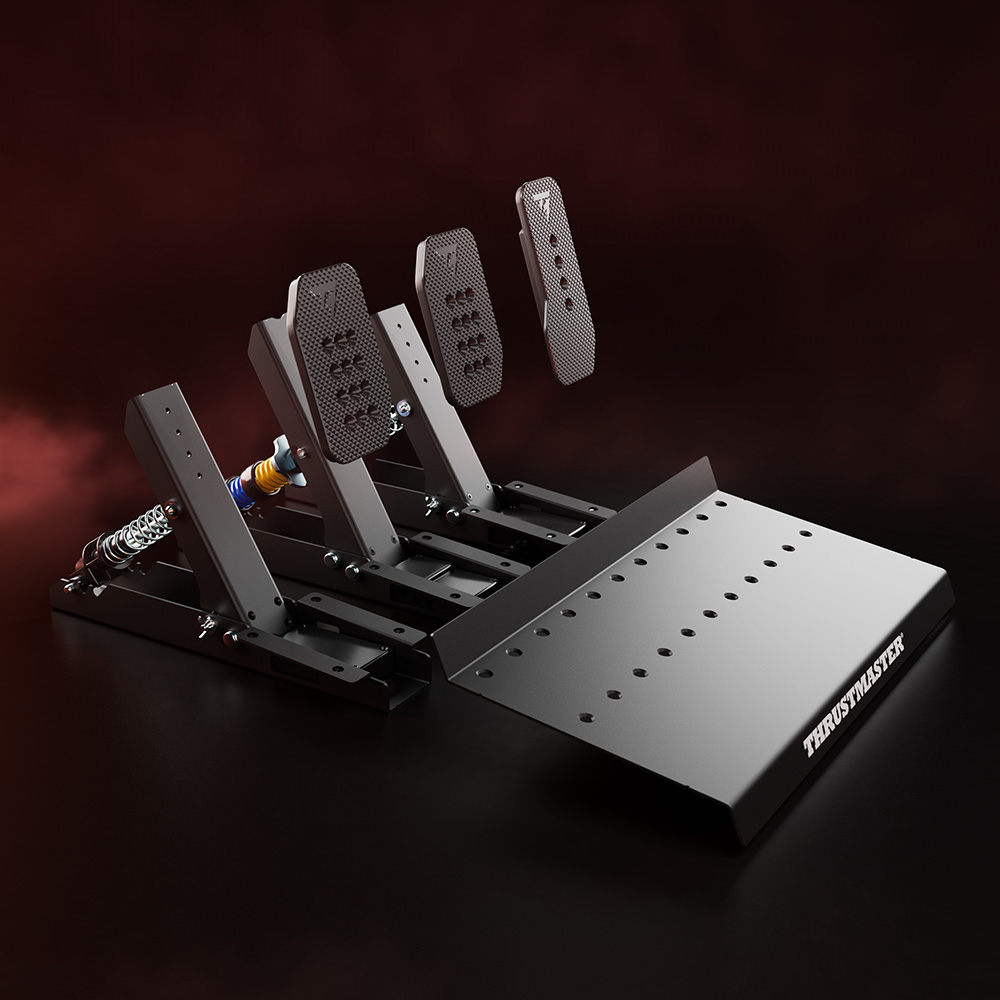

Raceline Pedals III LC is built with a sturdy, 100% metal structure, ensuring strength and durability. Fully modular, it lets you adjust the pedals' position and height, or even remove the clutch pedal to suit your driving style. The anthracite gray metal pedal heads with a non-slip texture complement its rugged design while adding a touch of character.
COMPATIBILITY
Raceline Pedals III LC is compatible with all Thrustmaster Force Feedback racing wheel bases (excluding T500) on game consoles. On PC (Windows 10/11), it is compatible with all racing wheel bases via USB connection. All hardware and software compatibility details are available on the Thrustmaster support website.
| PRODUCT MEASUREMENTS | ||||
|---|---|---|---|---|
| Dimensions |
| |||
| Weight | 4.6 kg | |||
| BOX CONTENTS |
|---|
| 1 x Raceline Pedals III LC |
| 3 x Carpet grip non-slip pads |
| 1 x Brake adjustment kit |
| 1 x RJ45 pedal set cable |
| 1 x USB-C pedal set cable |
| 1 x triple 3.5 mm jack to RJ12 cable |
| 2 x 2.5 mm jack to 3.5 mm jack pedal-to-pedal cables |
| 1 x Torx adjustment wrench |
| Warranty flyer |
| Instruction manual printed on the box |
